Description
ΠΙΝΑΚΑΣ ΧΑΡΑΚΤΗΡΙΣΤΙΚΩΝ :
|
Χωριτηκότητα Δοχείου |
Αρχική πίεση |
Στατικό Ύψος |
Μέση θερμοκρασία 80°C (90°C-70°C) Εγκατάστασης |
Διαστάσεις |
Παροχή |
||
|
Λίτρα |
atm | m | Litra | kcal/h | D (mm) | H (mm) | ø |
|

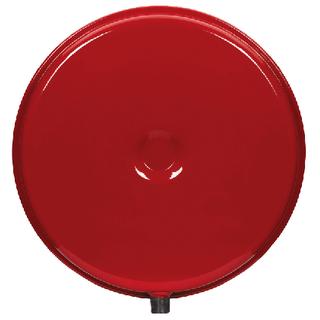

ΠΛΑΚΕ |
|||||||
|
12 |
0,5 |
5 |
259 |
18.560 |
325 | 160 | 3/4’’ |
|
1,0 |
10 |
207 |
14.840 |
||||
|
18 |
0,5 |
5 |
380 |
27.950 |
385 | 190 | 3/4’’ |
|
1,0 |
10 |
310 |
22.210 |
||||
|
ΣΦΑΙΡΙΚΑ ΚΑΘΕΤΑ |
|||||||
|
8 |
0,5 |
5 |
172 |
12.320 |
200 |
330 |
3/4’’ |
|
1,0 |
10 |
138 |
9.890 |
||||
|
12 |
0,5 |
5 |
259 |
18.560 |
270 |
310 |
3/4’’ |
|
1,0 |
10 |
207 |
14.840 |
||||
|
18 |
0,5 |
5 |
380 |
27.950 |
270 |
425 |
3/4’’ |
|
1,0 |
10 |
310 |
22.210 |
||||
|
1,5 |
15 |
231 |
16.580 |
||||
|
25 |
0,5 |
5 |
538 |
38.550 |
290 |
468 |
3/4’’ |
|
1,0 |
10 |
431 |
30.890 |
||||
|
1,5 |
15 |
324 |
23.220 |
||||
|
ΣΦΑΙΡΙΚΑ ΚΑΘΕΤΑ ΜΕ ΠΟΔΙΑ |
|||||||
|
35 |
0,5 |
5 |
754 |
54.059 |
320 |
525 |
3/4’’ |
|
1,0 |
10 |
603 |
43.247 |
||||
|
1,5 |
15 |
453 |
32.435 |
||||
|
50 |
0,5 |
5 |
1.078 |
77.277 |
380 |
620 |
3/4’’ |
|
1,0 |
10 |
862 |
61.782 |
||||
|
1,5 |
15 |
647 |
46.366 |
||||
|
80 |
0,5 |
5 |
1.724 |
123.600 |
450 |
662 |
1’’ |
|
1,0 |
10 |
1.379 |
98.900 |
||||
|
1,5 |
15 |
1.034 |
74.000 |
||||
|
2,0 |
20 |
690 |
49.500 |
||||
|
100 |
0,5 |
5 |
2.155 |
154.500 |
450 |
730 |
1’’ |
|
1,0 |
10 |
1.724 |
123.600 |
||||
|
1,5 |
15 |
1.293 |
96.000 |
||||
|
2,0 |
20 |
862 |
61.750 |
||||
|
150 |
0,5 |
5 |
3.234 |
231.770 |
554 |
807 |
1.1/2’’ |
|
1,0 |
10 |
2.500 |
185.330 |
||||
|
1,5 |
15 |
1.941 |
139.110 |
||||
|
2,0 |
20 |
1.293 |
92.670 |
||||
|
200 |
0,5 |
5 |
4.310 |
308.886 |
554 |
988 |
1.1/2’’ |
|
1,0 |
10 |
3.448 |
247.100 |
||||
|
1,5 |
15 |
2.586 |
185.230 |
||||
|
2,0 |
20 |
1.724 |
123.560 |
||||
|
250 |
0,5 |
5 |
5.379 |
358.000 |
624 |
1006 |
1.1/2’’ |
|
1,0 |
10 |
4.310 |
308.000 |
||||
|
1,5 |
15 |
3.241 |
232.000 |
||||
|
2,0 |
20 |
2.172 |
135.000 |
||||
|
300 |
0,5 |
5 |
6.468 |
463.400 |
630 |
1160 |
1.1/2’’ |
|
1,0 |
10 |
5.172 |
370.600 |
||||
|
1,5 |
15 |
3.879 |
278.000 |
||||
|
2,0 |
20 |
2.586 |
186.330 |
||||
|
500 |
0,5 |
10.776 |
773.000 |
775 |
1250 |
1.1/2’’ |
|
|
1,0 |
8.621 |
617.000 |
|||||
|
1,5 |
6.466 |
463.000 |
|||||
|
2,0 |
4.310 |
309.000 |
|||||
|
2,5 |
2.155 |
155.000 |
|||||
|
700 |
0,5 |
15.086 |
1.084.000 |
780 |
1635 |
1.1/2’’ |
|
|
1,0 |
12.069 |
864.000 |
|||||
|
1,5 |
9.052 |
648.000 |
|||||
|
2,0 |
6.034 |
432.000 |
|||||
|
2,5 |
3.017 |
216.000 |
|||||
